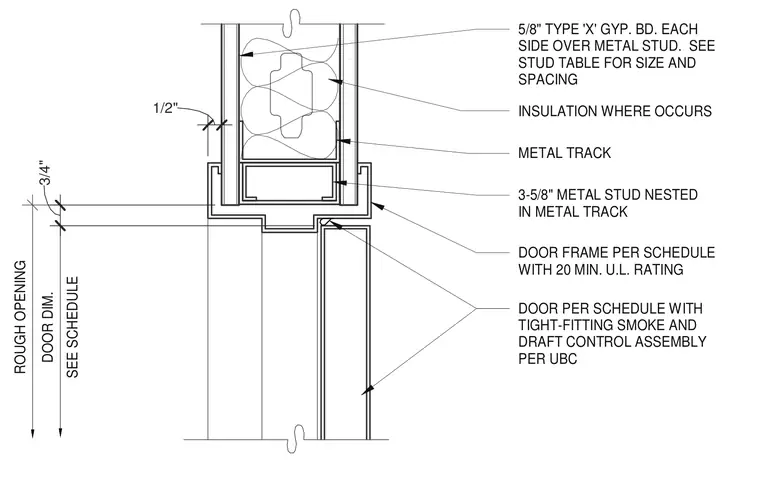

A twenty-minute UL-rated door frame is anchored within a rough opening formed by a metal track and nested three-and-five-eighths-inch metal studs. Five-eighths-inch Type X gypsum board clads each side of the stud wall over the metal track, enclosing thermal insulation where specified. The door assembly includes a tight-fitting smoke and draft control arrangement complying with building code requirements.
3-5/8" METAL STUD NESTED IN METAL TRACK METAL TRACK 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUD. SEE STUD TABLE FOR SIZE AND SPACING INSULATION WHERE OCCURS DOOR FRAME PER SCHEDULE WITH 20 MIN. U.L. RATING DOOR PER SCHEDULE WITH TIGHT-FITTING SMOKE AND DRAFT CONTROL ASSEMBLY PER UBC DOOR DIM. SEE SCHEDULE ROUGH OPENING 1/2" 3/4"
