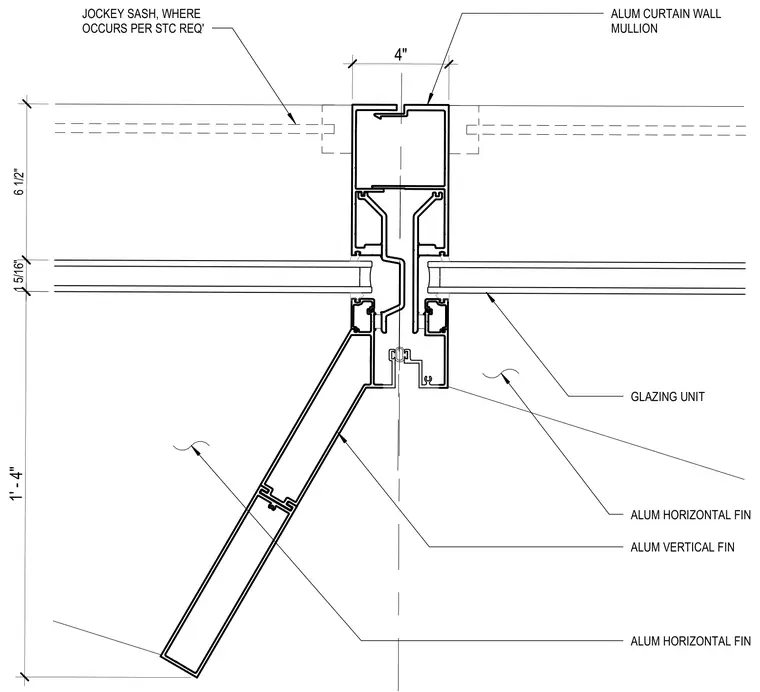

An aluminum curtain wall mullion forms the outer reverse tapered corner with adjoining glazing units set at an angle. An aluminum vertical fin and aluminum horizontal fins project outward from the corner assembly. A jockey sash is included where required per sound transmission class specifications.
GLAZING UNIT ALUM HORIZONTAL FIN ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN 6 1/2" 1 5/16" 4" 1' - 4" JOCKEY SASH, WHERE OCCURS PER STC REQ'
