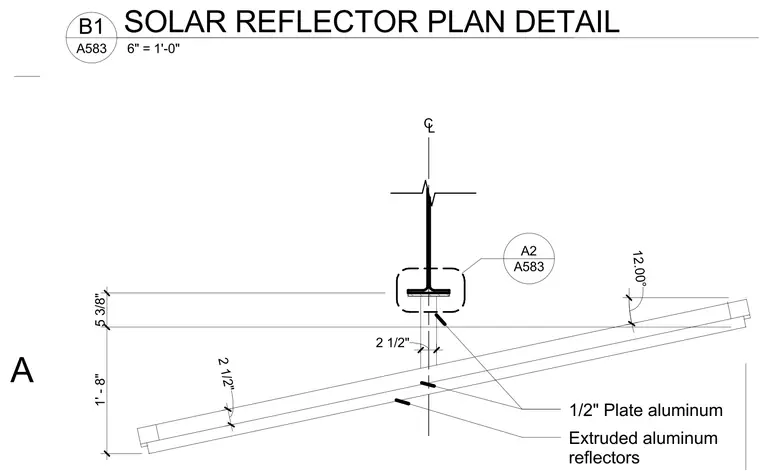

Extruded aluminum reflectors are mounted at a 12.00 degree angle to a one-half-inch aluminum plate connection assembly. The detail indicates precise spacing of five-three-eighths inches and one foot eight inches along the centerline alignment. Dimensioned offsets of two and one-half inches define the component positioning relative to the support structure.
5 3/8" 1' - 8" 2 1/2" 2 1/2" 1/2" Plate aluminum Extruded aluminum reflectors 12.00° CL A583 A2 A 6" = 1'-0" A583 B1 SOLAR REFLECTOR PLAN DETAIL
