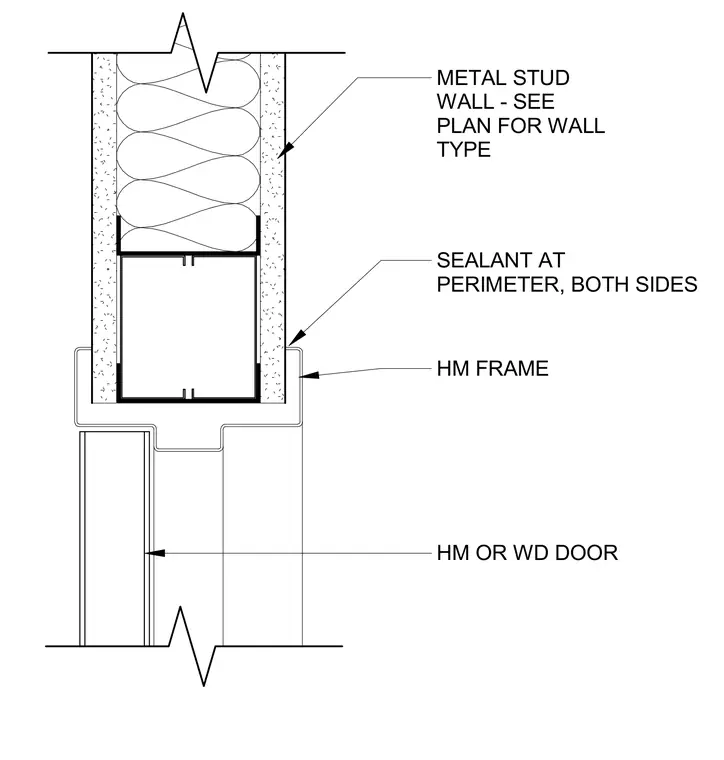

A hollow metal frame wraps the head of a metal stud wall, which is sized per the architectural floor plan. The perimeter joint between the frame and the wall finish is sealed on both sides. A hollow metal or wood door is hung within the frame opening.
METAL STUD WALL - SEE PLAN FOR WALL TYPE HM FRAME HM OR WD DOOR SEALANT AT PERIMETER, BOTH SIDES
