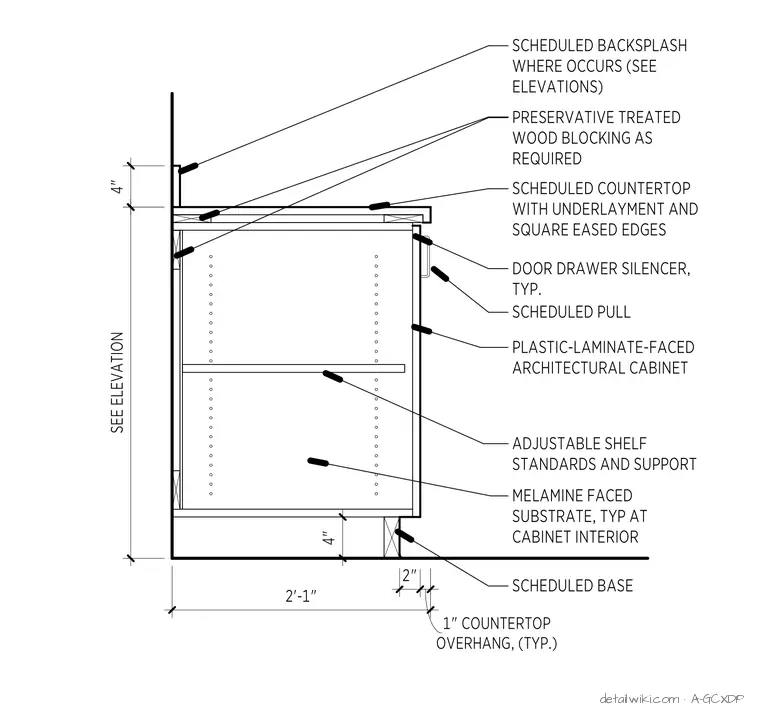

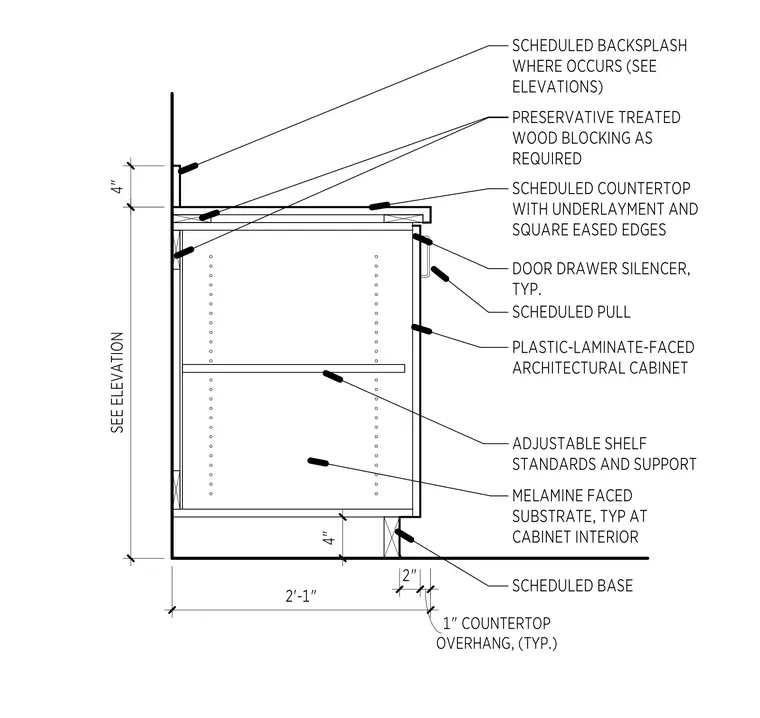

This base cabinet assembly features a plastic-laminate-faced cabinet with a melamine-faced interior substrate. The unit includes an adjustable shelf supported by shelf standards and supports. The countertop is installed over an underlayment with square eased edges and a one-inch typical overhang, backed by a four-inch backsplash where scheduled. Preservative-treated wood blocking is provided as required at the wall interface. The cabinet front includes a scheduled pull and door drawer silencers, while the base is finished with a scheduled base trim.
