This sound-rated partition assembly uses three-and-five-eighths-inch minimum non-structural metal framing studs spaced at twenty-four inches on center, with thirty-three mil thickness and thirty-three ksi yield strength. Layers of gypsum board are applied to both sides over the metal framing. An acoustic blanket insulation fills the stud cavity, and a minimum one-quarter-inch acoustical joint sealant is applied at the base intersection. The framing accommodates a span limit of fourteen feet for the three-and-five-eighths-inch stud size, supported by acoustic testing reference number CERTAINTEED #NRC-TL-93-324.

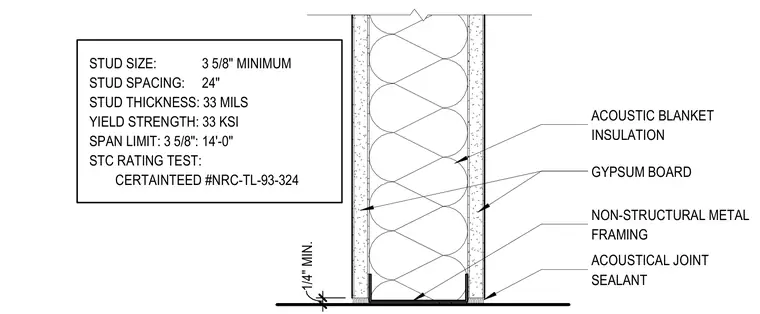

1 / 4 " M I N . ACOUSTICAL JOINT SEALANT GYPSUM BOARD NON-STRUCTURAL METAL FRAMING GYPSUM BOARD STUD SIZE: 3 5/8" MINIMUM STUD SPACING: 24" STUD THICKNESS: 33 MILS YIELD STRENGTH: 33 KSI SPAN LIMIT: 3 5/8": 14'-0" STC RATING TEST: CERTAINTEED #NRC-TL-93-324 ACOUSTIC BLANKET INSULATION
