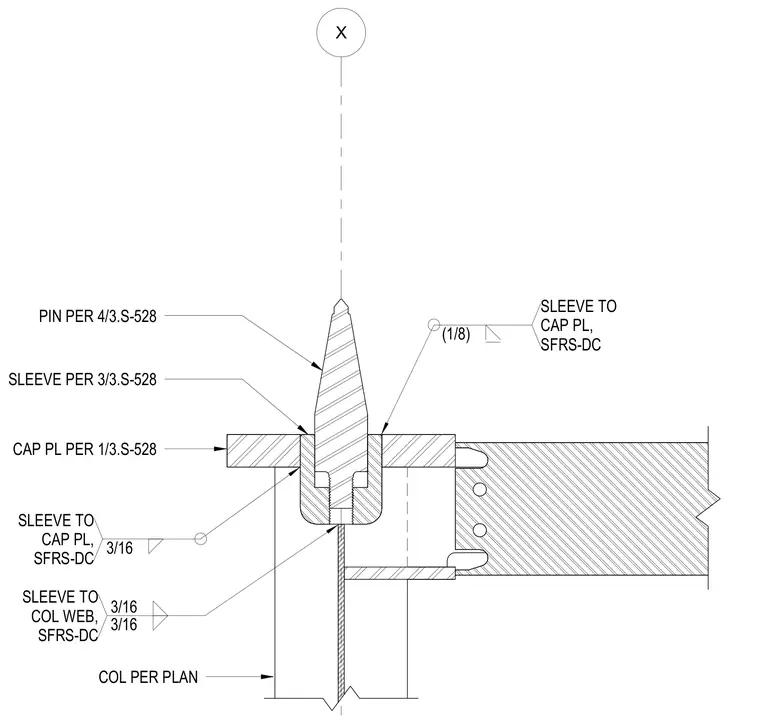

A structural steel column connects to a cap plate via a sleeve and pin assembly. The sleeve is attached to the cap plate with three-sixteenths inch fillet welds and secured to the column web with three-sixteenths inch fillet welds. A pin engages the sleeve and is detailed per sheet specifications.
COL PER PLAN X (1/8) SLEEVE TO CAP PL, SFRS-DC 3/16 SLEEVE TO CAP PL, SFRS-DC 3/16 3/16 SLEEVE TO COL WEB, SFRS-DC CAP PL PER 1/3.S-528 SLEEVE PER 3/3.S-528 PIN PER 4/3.S-528
