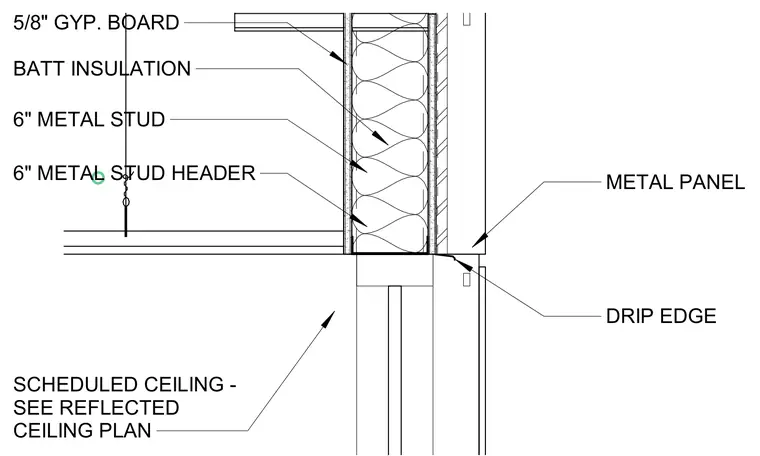

A six-inch cold-formed metal stud header frames the top of the wall assembly, with batt insulation installed within the stud cavity. The exterior face is finished with metal panels incorporating a drip edge at the lower boundary. The interior side is lined with five-eighths-inch gypsum board and interfaces with a scheduled ceiling as indicated on the reflected ceiling plan.
METAL PANEL 5/8" GYP. BOARD SCHEDULED CEILING - SEE REFLECTED CEILING PLAN 6" METAL STUD BATT INSULATION 6" METAL STUD HEADER DRIP EDGE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
