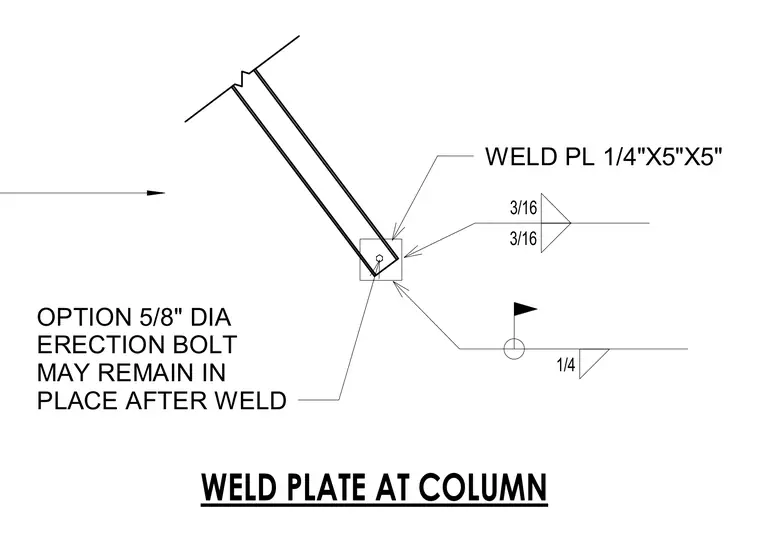

A quarter-inch by five-inch by five-inch weld plate is connected to a structural column with three-sixteenth-inch fillet welds on the sides and a quarter-inch fillet weld at the base. A five-eighths-inch diameter erection bolt is provided as an option and may remain in place after the weld is completed.
1/4 3/16 3/16 WELD PL 1/4"X5"X5" OPTION 5/8" DIA ERECTION BOLT MAY REMAIN IN PLACE AFTER WELD WELD PLATE AT COLUMN
