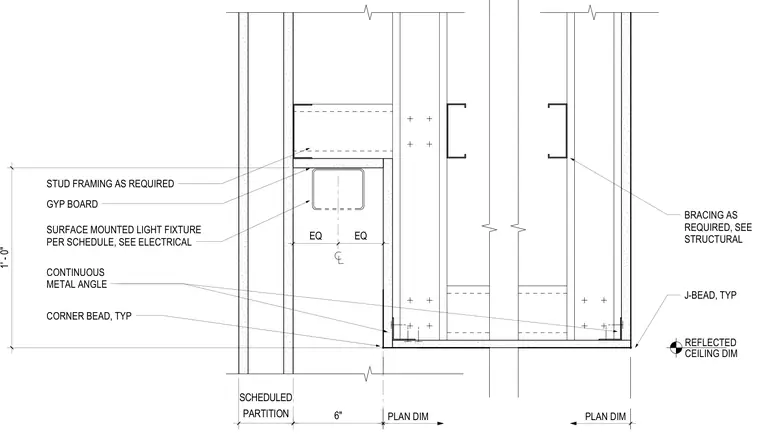

This plan detail shows a six-inch partition framing with gypsum board and stud framing as required by structural engineering. A surface-mounted light fixture is centered within the partition recess, with equal dimensions on each side. Continuous metal angles support the gypsum board finish, featuring J-beads and typical corner beads at the edges. Structural bracing is provided as required.
CORNER BEAD, TYP PLAN DIM REFLECTED CEILING DIM CONTINUOUS METAL ANGLE J-BEAD, TYP PLAN DIM 6" PARTITION SCHEDULED 1' - 0" EQ EQ SURFACE MOUNTED LIGHT FIXTURE PER SCHEDULE, SEE ELECTRICAL STUD FRAMING AS REQUIRED GYP BOARD BRACING AS REQUIRED, SEE STRUCTURAL
