Architectural · A-GBQMY

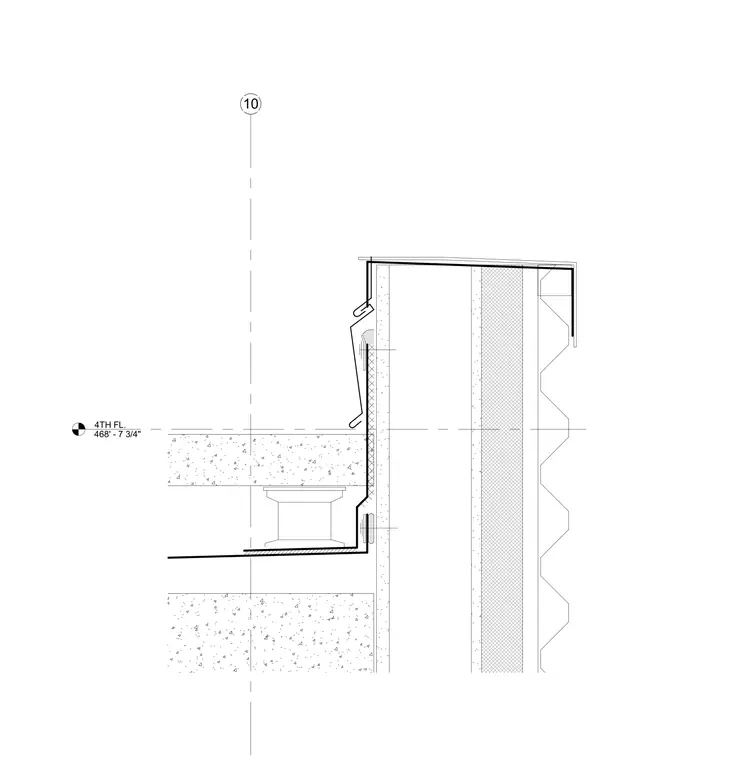

Metal Panel Parapet at East Terrace

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A7.42
Discipline: Architectural

Materials

Aluminum Metal (misc.)

Elements

Facades / Cladding Floors / Slabs Parapets Railings / Guards

Text on the drawing

4TH FL. 468' - 7 3/4" 10
