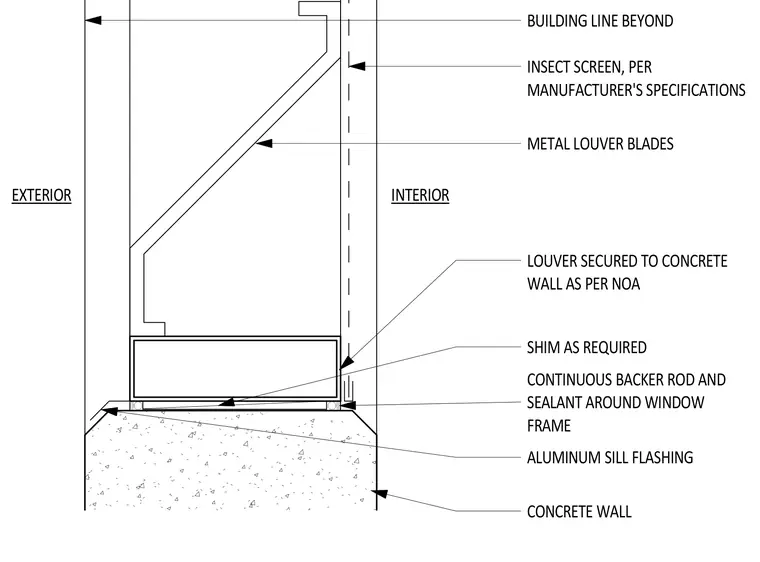

Metal louver blades bear on an aluminum sill flashing resting over a concrete wall. Shims are placed as required beneath the louver frame, which is secured to the concrete wall as per the Notice of Acceptance. A continuous backer rod and sealant seal the joint around the window frame on the interior side. An insect screen is positioned behind the exterior building line per the manufacturer's specifications.
BUILDING LINE BEYOND INSECT SCREEN, PER MANUFACTURER'S SPECIFICATIONS METAL LOUVER BLADES LOUVER SECURED TO CONCRETE WALL AS PER NOA CONTINUOUS BACKER ROD AND SEALANT AROUND WINDOW FRAME SHIM AS REQUIRED ALUMINUM SILL FLASHING CONCRETE WALL EXTERIOR INTERIOR
