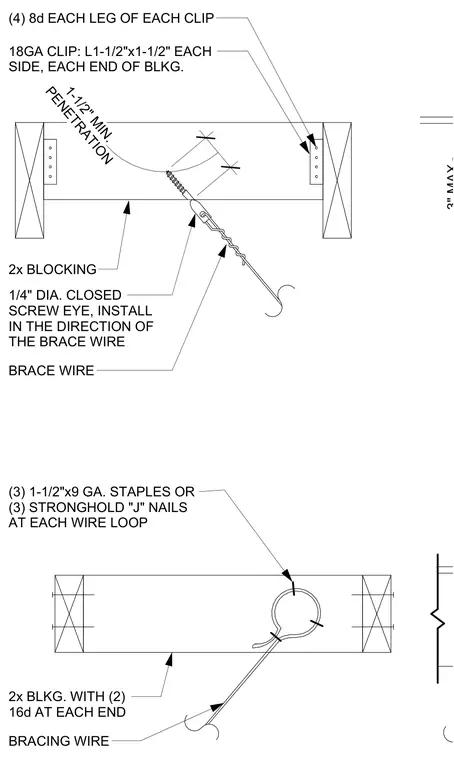

A suspended ceiling seismic brace wire anchorage connects to wood framing members. A two-inch nominal wood blocking is fastened at each end using two 16d nails. The brace wire attaches via a quarter-inch diameter closed screw eye installed in the direction of the wire pull with a one-and-a-half-inch minimum penetration. Alternatively, the wire loop is secured to the blocking using three one-and-a-half-inch by nine-gauge staples or three stronghold J-nails. Eighteen-gauge clips measuring one-and-a-half by one-and-a-half inches are attached to each side and each end of the blocking with four 8d nails per leg.
1/4" DIA. CLOSED SCREW EYE, INSTALL IN THE DIRECTION OF THE BRACE WIRE 18GA CLIP: L1-1/2"x1-1/2" EACH SIDE, EACH END OF BLKG. PENETRATION 1-1/2" MIN. (3) 1-1/2"x9 GA. STAPLES OR (3) STRONGHOLD "J" NAILS AT EACH WIRE LOOP BRACING WIRE 2x BLKG. WITH (2) 16d AT EACH END BRACE WIRE 3" MAX. 2x BLOCKING (4) 8d EACH LEG OF EACH CLIP
