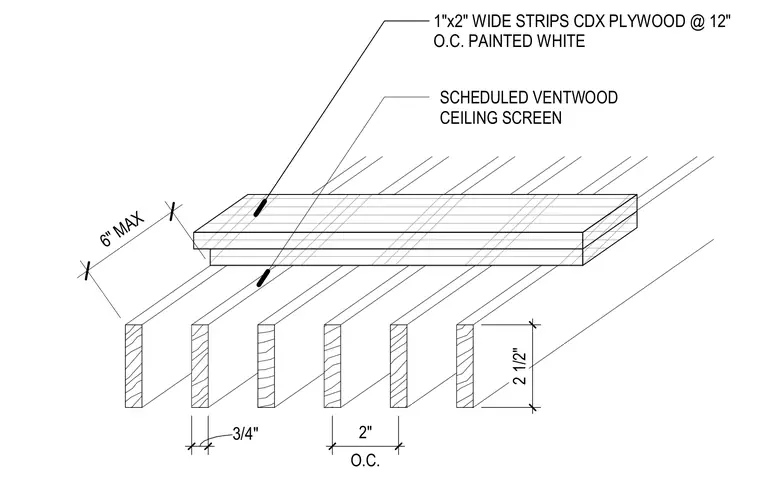

The scheduled Ventwood ceiling screen consists of timber slats spaced two inches on center with three-quarter-inch widths and two-and-a-half-inch depths. One-by-two-inch wide strips of CDX plywood are spaced twelve inches on center and painted white. The maximum distance is six inches.
O.C. 2" - 2 1/2" 3/4" 1"x2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED WHITE 6" MAX SCHEDULED VENTWOOD CEILING SCREEN
