Temporary Construction Sign

Materials

Elements

About this detail

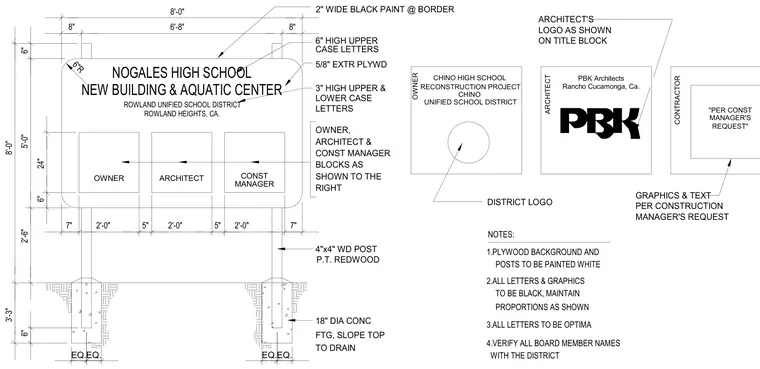

This temporary construction sign detail specifies a five-eighths-inch exterior plywood background panel mounted on four-by-four pressure-treated redwood wood posts. The posts are anchored into eighteen-inch diameter concrete footings featuring sloped tops to promote drainage. The sign layout includes six-inch high uppercase letters and three-inch high upper and lowercase letters in Optima typeface, with owner, architect, and construction manager blocks and logos as shown. Painting notes require the plywood background and posts to be painted white, and all letters and graphics to be black while maintaining specified proportions.
