The gas shut-off valve sign measures ten inches wide by seven inches tall. It features a red background with two-inch tall, one-thirty-second-inch high white raised lettering, typically. The sign requires coordination with plumbing drawings for exact placement.

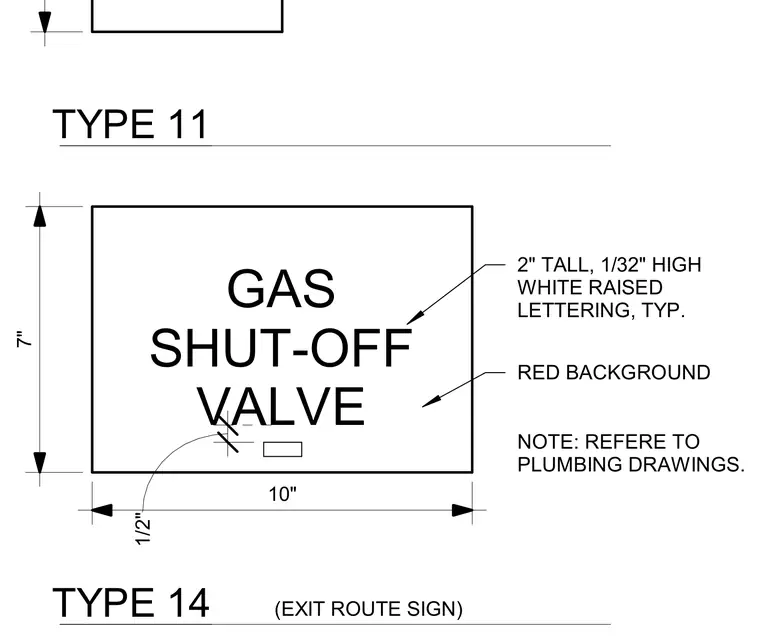

TYPE 11 TYPE 14 (EXIT ROUTE SIGN) GAS SHUT-OFF VALVE 10" 1/2" 2" TALL, 1/32" HIGH WHITE RAISED LETTERING, TYP. RED BACKGROUND NOTE: REFERE TO PLUMBING DRAWINGS. 7"
