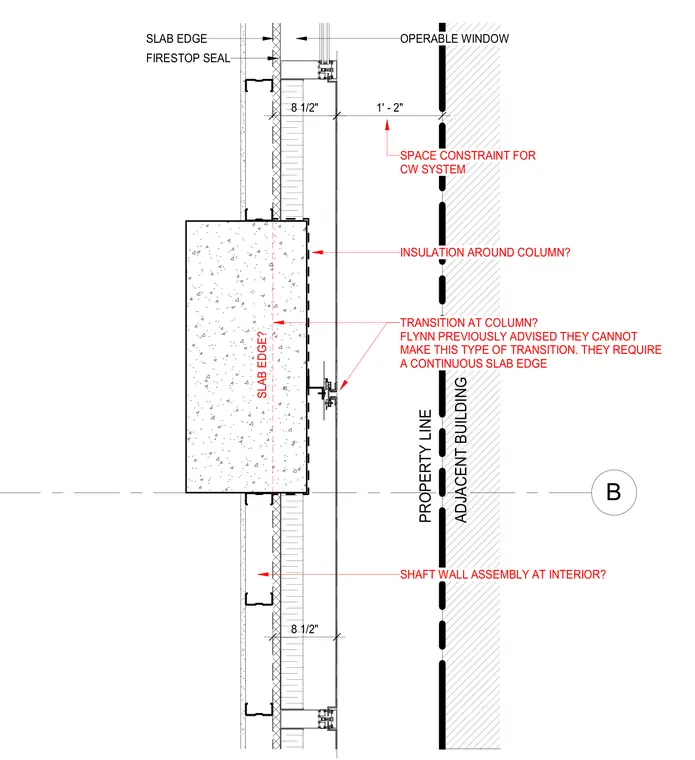

A metal panel wall assembly interfaces with a concrete slab edge and column near a property line and adjacent building. The detail highlights coordination challenges including an eight-and-a-half-inch insulation zone, a one-foot-two-inch space constraint for the curtain wall system, and a required continuous slab edge transition. Interior conditions include a shaft wall assembly and a firestop seal at the slab edge. An operable window is positioned near the column, and red text notes document constructability concerns regarding panel transitions.
B FIRESTOP SEAL SLAB EDGE 8 1/2" TRANSITION AT COLUMN? FLYNN PREVIOUSLY ADVISED THEY CANNOT MAKE THIS TYPE OF TRANSITION. THEY REQUIRE A CONTINUOUS SLAB EDGE 1' - 2" 8 1/2" INSULATION AROUND COLUMN? OPERABLE WINDOW ADJACENT BUILDING SPACE CONSTRAINT FOR CW SYSTEM PROPERTY LINE SLAB EDGE? SHAFT WALL ASSEMBLY AT INTERIOR?
