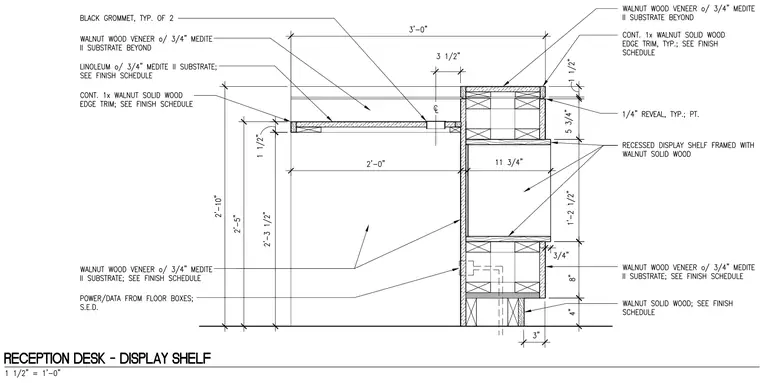

This interior millwork detail shows a reception desk counter integrated with a recessed display shelf unit. The desktop is constructed from a three-quarter-inch Medite II substrate finished with walnut wood veneer and linoleum, edged with continuous one-inch walnut solid wood trim, and fitted with black grommets and power/data from floor boxes as sized per drawings. The adjacent vertical assembly incorporates a recessed display shelf framed with walnut solid wood, detailed with a one-quarter-inch typical painted reveal and walnut wood veneer over a three-quarter-inch Medite II substrate beyond. Vertical framing members and solid wood trim establish the overall height and depth profile with specified dimensional clearances.
