A-GASWG — Screen Wall Head

Architectural · A-GASWG

Screen Wall Head

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A-585
Discipline: Architectural

Materials

Elements

Facades / Cladding Walls

Text on the drawing

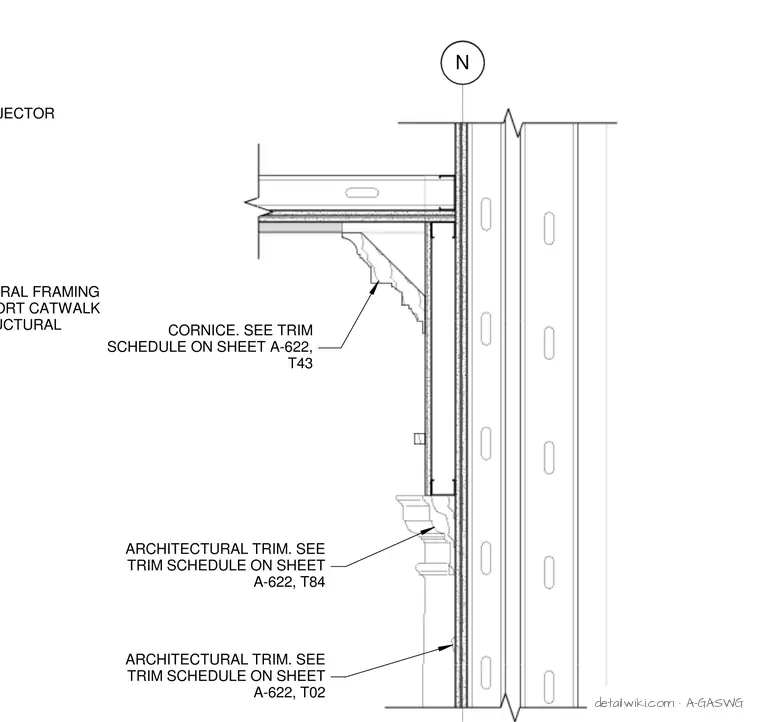

N CORNICE. SEE TRIM SCHEDULE ON SHEET A-622, T43 ARCHITECTURAL TRIM. SEE TRIM SCHEDULE ON SHEET A-622, T84 ARCHITECTURAL TRIM. SEE TRIM SCHEDULE ON SHEET A-622, T02 STRUCTURAL FRAMING TO SUPPORT CATWALK SEE STRUCTURAL PLYWOOD PROJECTOR
