Reheat Coil Piping with 3-Way Control Valve

Elements

About this detail

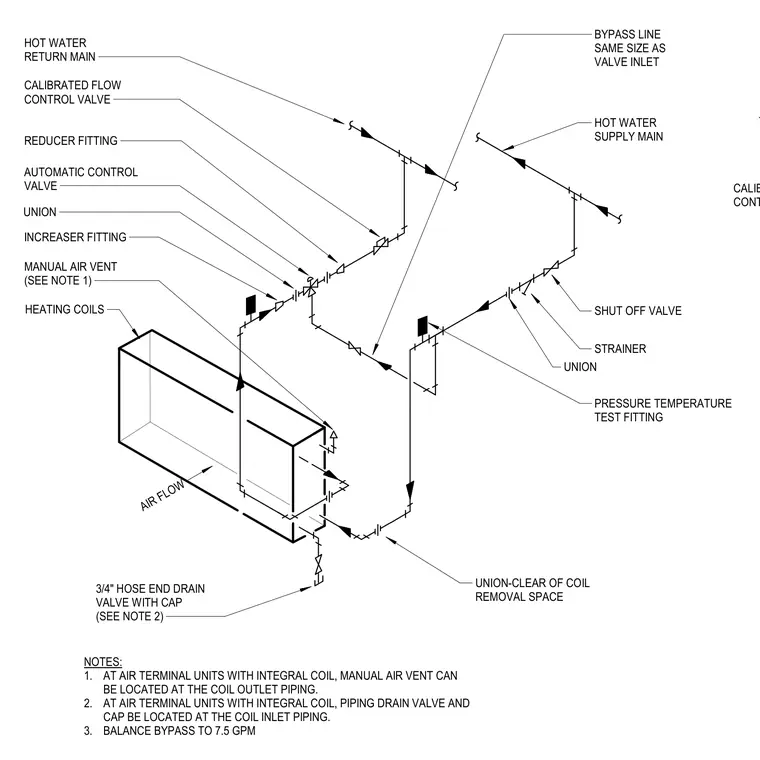

Hot water supply and return mains connect to heating coils through shut-off valves, strainers, unions, and pressure-temperature test fittings. An automatic control valve and calibrated flow control valve regulate flow to the coil, with a bypass line matching the valve inlet size. A manual air vent is positioned on the coil outlet piping, while a three-quarter-inch hose end drain valve with a cap is located on the coil inlet piping. Unions are positioned clear of the coil removal space for maintenance access.
