A removable six-inch diameter steel pipe bollard with an outside diameter of six point six two five inches sets inside an eight-inch diameter double-extra strong steel pipe sleeve with an inside diameter of six point eight seven five inches. The removable bollard features a one-quarter inch steel cap welded at the top with a one-half inch diameter lifting lug welded to the cap plate. The outer steel sleeve is embedded two feet into a concrete footing beneath the slab. The bollard extends four feet above the finished floor level.

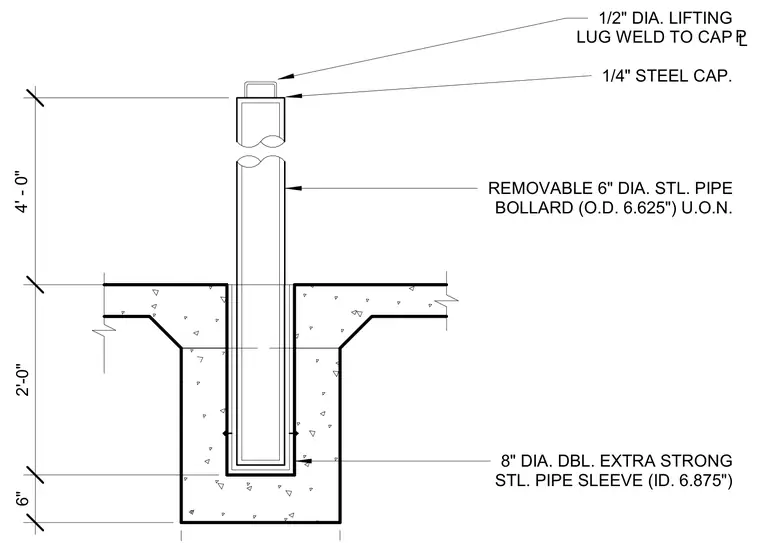

1/2" DIA. LIFTING LUG WELD TO CAP 8" DIA. DBL. EXTRA STRONG STL. PIPE SLEEVE (ID. 6.875") REMOVABLE 6" DIA. STL. PIPE BOLLARD (O.D. 6.625") U.O.N. 1/4" STEEL CAP. P L 6" 2'-0" . 4' - 0"
