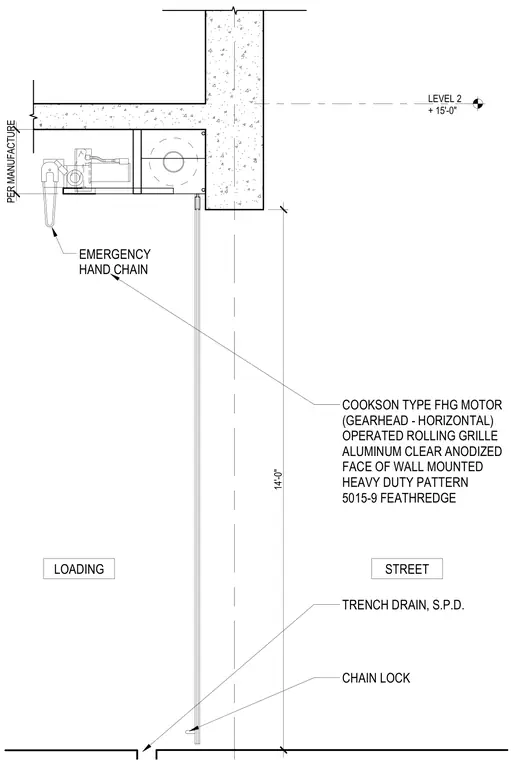

An aluminum clear anodized face-of-wall mounted heavy-duty rolling grille is installed at a 14'-0" high loading dock opening beneath Level 2. The assembly is operated by a Cookson type FHG motor with a horizontal gearhead and includes an emergency hand chain and chain lock. A trench drain is positioned at the street level threshold below the door.
PER MANUFACTURE 14'-0" COOKSON TYPE FHG MOTOR (GEARHEAD - HORIZONTAL) OPERATED ROLLING GRILLE ALUMINUM CLEAR ANODIZED FACE OF WALL MOUNTED HEAVY DUTY PATTERN 5015-9 FEATHREDGE EMERGENCY HAND CHAIN CHAIN LOCK LOADING LEVEL 2 + 15'-0" TRENCH DRAIN, S.P.D. STREET
