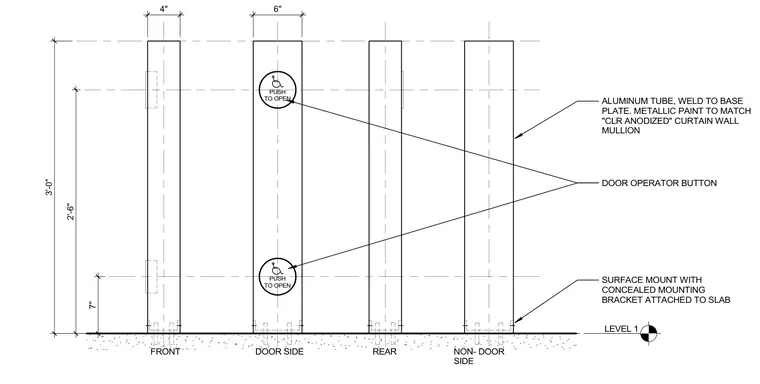

An aluminum tube bollard measuring 4 inches by 6 inches stands 3 feet high above Level 1, welded to a base plate and finished with metallic paint to match clear anodized curtain wall mullions. Two door operator push-to-open buttons are mounted on the face of the tube at 7 inches and 2 feet 6 inches above the slab. The assembly is surface-mounted using a concealed mounting bracket attached directly to the concrete slab.
6" 4" FRONT DOOR SIDE REAR NON- DOOR SIDE ALUMINUM TUBE, WELD TO BASE PLATE. METALLIC PAINT TO MATCH "CLR ANODIZED" CURTAIN WALL MULLION DOOR OPERATOR BUTTON PUSH TO OPEN PUSH TO OPEN LEVEL 1 7" 2'-6" 3'-0" SURFACE MOUNT WITH CONCEALED MOUNTING BRACKET ATTACHED TO SLAB
