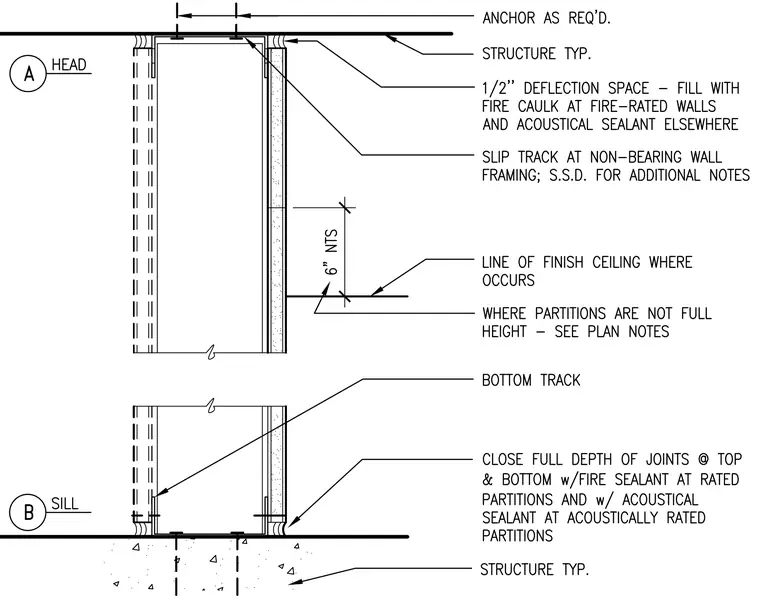

Head and sill conditions of a non-bearing metal stud partition framing against the overhead and floor structures. The head detail features a slip track anchored to the structure above, with a one-half-inch deflection space filled with fire caulk at fire-rated walls and acoustical sealant elsewhere. Gypsum board terminates below the structure, and a line indicates the finish ceiling where applicable. The sill detail shows a bottom track anchored to a concrete or structural substrate, with joints closed full depth using fire sealant at rated partitions and acoustical sealant at acoustically rated partitions.
