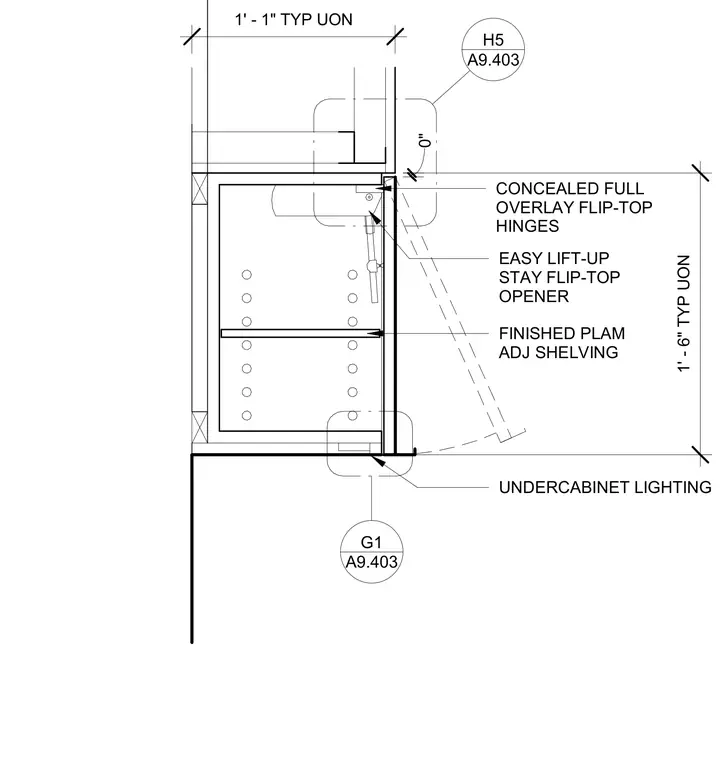

Millwork section showing upper cabinet construction with finished plastic laminate adjustable shelving. The cabinet assembly utilizes concealed full overlay flip-top hinges and an easy lift-up stay flip-top opener. Undercabinet lighting is integrated beneath the unit. Vertical dimensions of 1'-6" and 1'-1" typical un-otherwise-noted apply to the casework layout.
FINISHED PLAM ADJ SHELVING A9.403 H5 A9.403 G1 1' - 6" TYP UON 1' - 1" TYP UON 0" EASY LIFT-UP STAY FLIP-TOP OPENER CONCEALED FULL OVERLAY FLIP-TOP HINGES UNDERCABINET LIGHTING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
