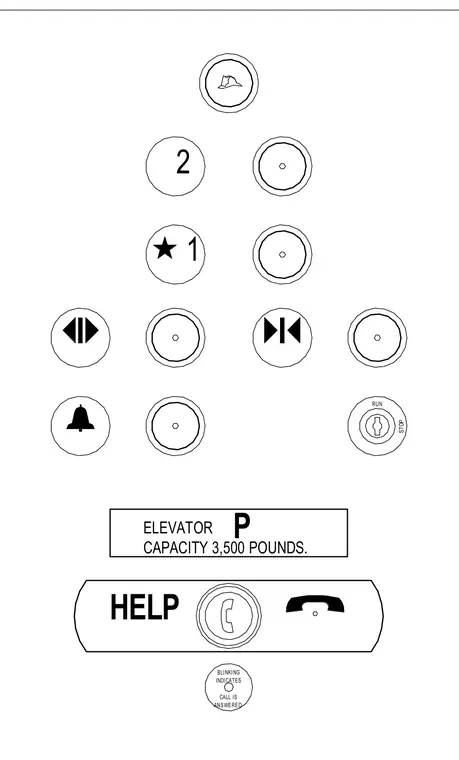

An elevator car operating panel layout includes numbered floor buttons for levels 1 and 2, door open and close buttons, an alarm bell button, a key-operated run-stop switch, and an emergency help station. The emergency section features a help text label alongside a phone icon and a call-status indicator light noting that a blinking indicator means the call is answered. A text box specifies an elevator capacity of 3,500 pounds.
2 1 RUN ELEVATOR CAPACITY 3,500 POUNDS. P HELP BLINKING INDICATES CALL IS ANSWERED STOP
