Architectural · A-G9ESE

Base Cabinet Sink Detail

Materials

Elements

Partitions Floors / Slabs Millwork / Casework

About this detail

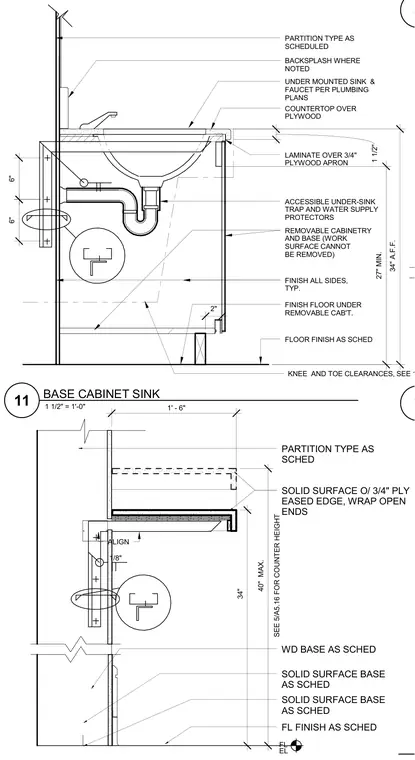

This interior millwork detail shows an accessible base cabinet and sink assembly mounted against a partition. The countertop consists of a solid surface or laminate material over three-quarter-inch plywood with an eased edge and a two-inch backsplash where noted. The plumbing installation includes an undermounted sink and faucet per plumbing plans, along with an accessible under-sink trap and water supply pipe protectors. The cabinet features removable cabinetry and base with a fixed work surface, providing twenty-seven inches minimum knee and toe clearance above the finished floor at thirty-four inches above finished floor. All sides are finished typically, with finish flooring carried under the removable cabinetry.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
