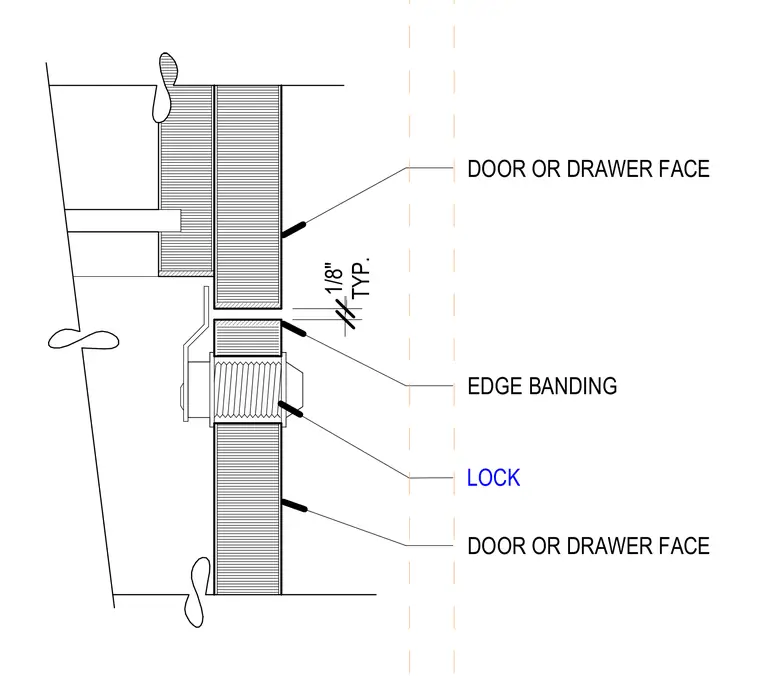

The door or drawer face features edge banding applied along the perimeter, maintaining a one-eighth inch typical gap between adjacent panels. A lock mechanism is integrated into the door or drawer face structure.
DOOR OR DRAWER FACE EDGE BANDING DOOR OR DRAWER FACE TYP. 1/8" LOCK
