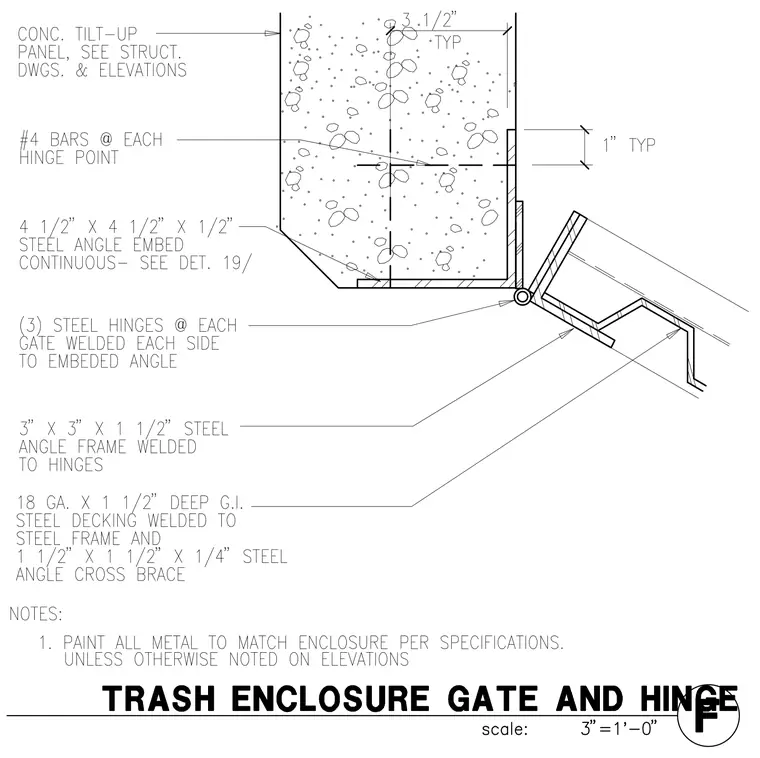

A structural steel gate frame constructed from three-inch by three-inch by one-and-a-half-inch steel angles is mounted to three steel hinges welded on each side to an embedded continuous four-and-a-half-inch by four-and-a-half-inch by one-half-inch steel angle. The gate panel utilizes eighteen-gauge by one-and-a-half-inch deep galvanized steel decking welded to the steel frame and reinforced with a one-and-a-half-inch by one-and-a-half-inch by one-quarter-inch steel angle cross brace. The embedded steel angle is anchored into the concrete tilt-up panel with number four reinforcing bars at each hinge point. All metal components are specified to be painted to match the enclosure unless noted otherwise on elevations.
