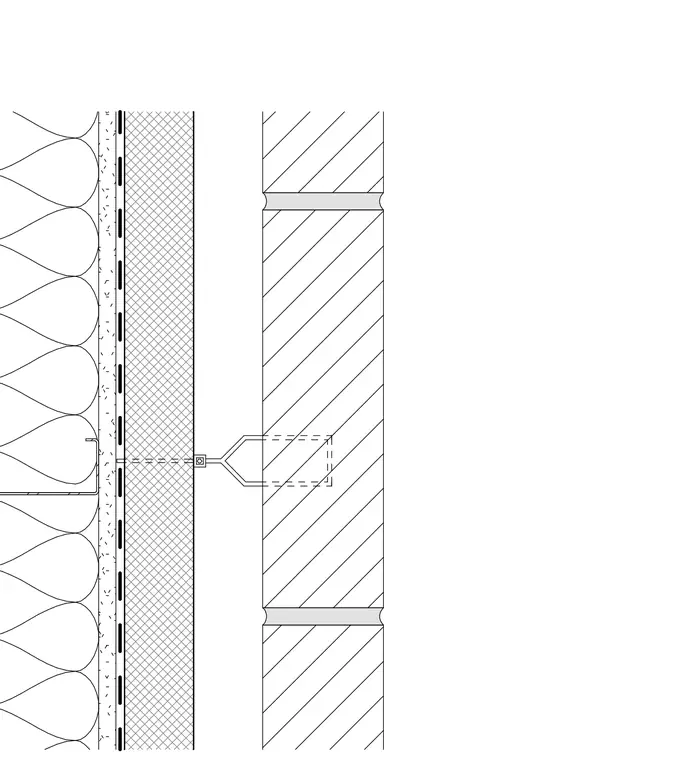

The section illustrates a multi-wythe exterior wall assembly featuring a brick veneer connected via a metal wall tie anchored through exterior insulation and sheathing into a cold-formed steel stud framing system. The interior side shows gypsum board, a vapor barrier/air barrier membrane, and batt insulation within the stud cavity. The exterior insulation layer is positioned directly behind the brick veneer, creating a thermally broken wall assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
