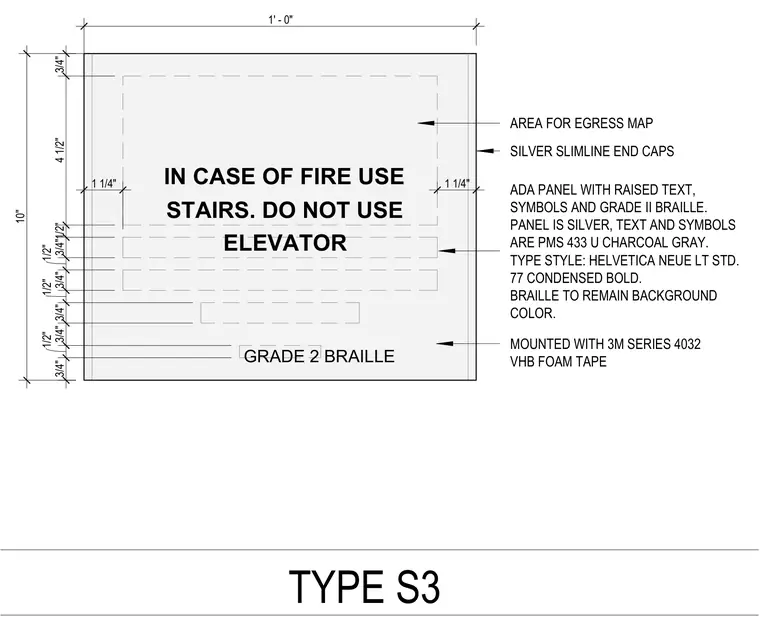

An ADA-compliant fire safety sign measures 1 foot wide by 10 inches high with silver slimline end caps and a silver panel finish. The raised text and symbols are printed in PMS 433 U charcoal gray using Helvetica Neue LT Std 77 Condensed Bold typography, with integrated Grade II braille remaining the background color. The assembly includes a designated area for an egress map. Mounting is accomplished using 3M Series 4032 VHB foam tape with 1 1/4 inch side margins.
TYPE S3 1' - 0" 10" 1 1/4" 3/4" 4 1/2" 1/2" 3/4" 1/2" 3/4" 1/2" 3/4" 3/4" 1/2" 3/4" IN CASE OF FIRE USE AREA FOR EGRESS MAP STAIRS. DO NOT USE ELEVATOR GRADE 2 BRAILLE SILVER SLIMLINE END CAPS ADA PANEL WITH RAISED TEXT, SYMBOLS AND GRADE II BRAILLE. PANEL IS SILVER, TEXT AND SYMBOLS ARE PMS 433 U CHARCOAL GRAY. TYPE STYLE: HELVETICA NEUE LT STD. 77 CONDENSED BOLD. BRAILLE TO REMAIN BACKGROUND COLOR. MOUNTED WITH 3M SERIES 4032 VHB FOAM TAPE 1 1/4"
