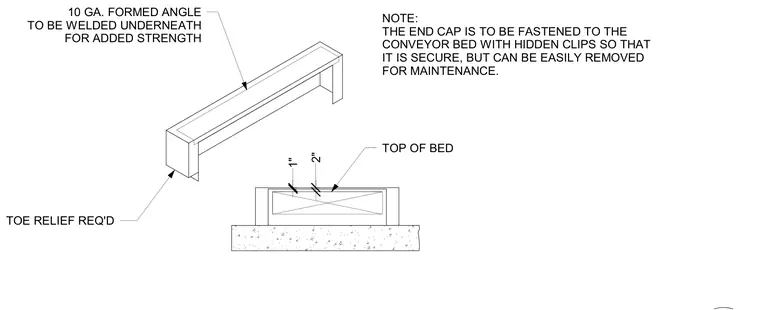

The end cap is fastened to the conveyor bed with hidden clips to ensure a secure fit while allowing easy removal for maintenance. A 10 gauge formed angle is welded underneath the assembly for added structural strength, requiring a toe relief. Key vertical clearances include a 1-inch and 2-inch dimension relative to the top of the bed.
10 GA. FORMED ANGLE TO BE WELDED UNDERNEATH FOR ADDED STRENGTH TOE RELIEF REQ'D TOP OF BED 2" 1" NOTE: THE END CAP IS TO BE FASTENED TO THE CONVEYOR BED WITH HIDDEN CLIPS SO THAT IT IS SECURE, BUT CAN BE EASILY REMOVED FOR MAINTENANCE.
