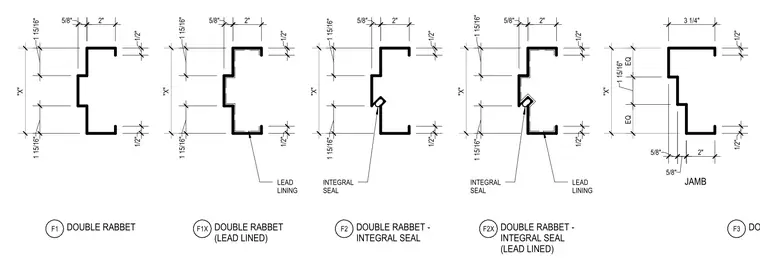

Metal door frame profiles show standard double rabbet configurations labeled F1, F1X, F2, F2X, and F3 detail variants. Dimensions specify a 2-inch depth with 1 15/16-inch and 5/8-inch offset increments across the frame profile. Select profiles incorporate integrated seal inserts and internal lead lining layers for radiation shielding applications. Each jamb section is fully dimensioned with equal spacing indicators and edge clearances.
1 15/16" 1 15/16" 5/8" 2" 1/2" 1/2" 1 15/16" 1 15/16" 5/8" 2" 1/2" 1/2" 1 15/16" 5/8" 2" 1/2" 1/2" 1 15/16" 5/8" 2" 1/2" 1/2" 3 1/4" 2" 5/8" 5/8" 1/2" 1/2" 1 15/16" 1 15/16" 1 15/16" EQ EQ LEAD LINING INTEGRAL SEAL INTEGRAL SEAL LEAD LINING JAMB DOUBLE RABBET F1 DOUBLE RABBET (LEAD LINED) F1X DOUBLE RABBET - INTEGRAL SEAL F2 DOUBLE RABBET - INTEGRAL SEAL (LEAD LINED) F2X DOUBLE EGRESS F3 "X" "X" "X" "X" "X"
