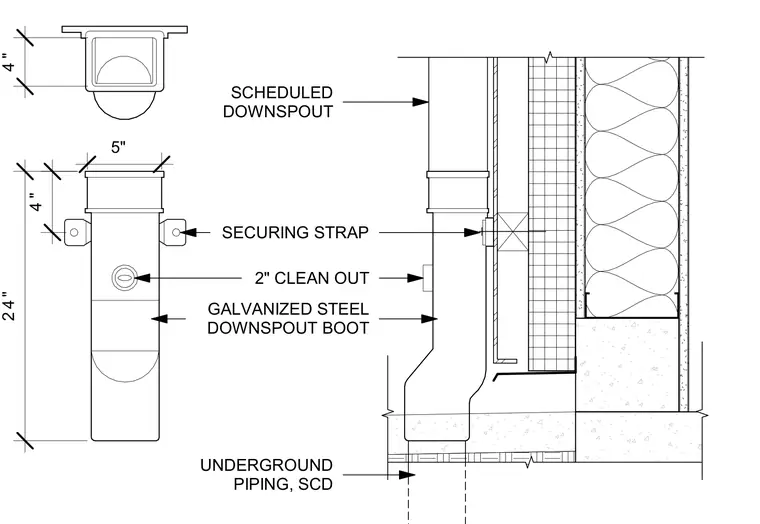

A scheduled downspout transitions into a twenty-four-inch galvanized steel downspout boot mounted against the exterior wall assembly. The boot features a two-inch cleanout and is anchored with dual securing straps. The lower outlet extends into underground piping.
SCHEDULED DOWNSPOUT GALVANIZED STEEL DOWNSPOUT BOOT 2" CLEAN OUT SECURING STRAP 2 4 " 4 " 5" 4 " UNDERGROUND PIPING, SCD
