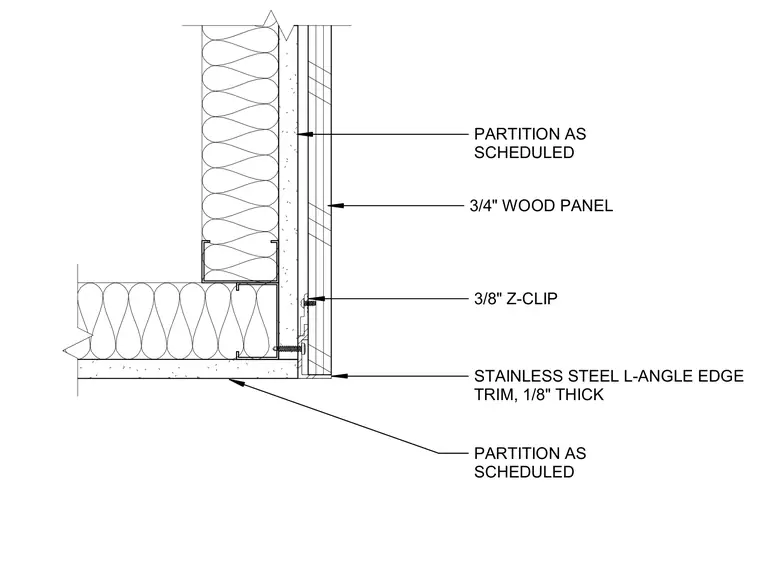

The wood wall edge assembly features a three-quarter-inch wood panel secured to the partition framing with a three-eighths-inch Z-clip. An eighth-inch thick stainless steel L-angle provides edge trim protection at the termination of the wood panel. The surrounding partition layers are built as scheduled.
3/8" Z-CLIP PARTITION AS SCHEDULED STAINLESS STEEL L-ANGLE EDGE TRIM, 1/8" THICK PARTITION AS SCHEDULED 3/4" WOOD PANEL
