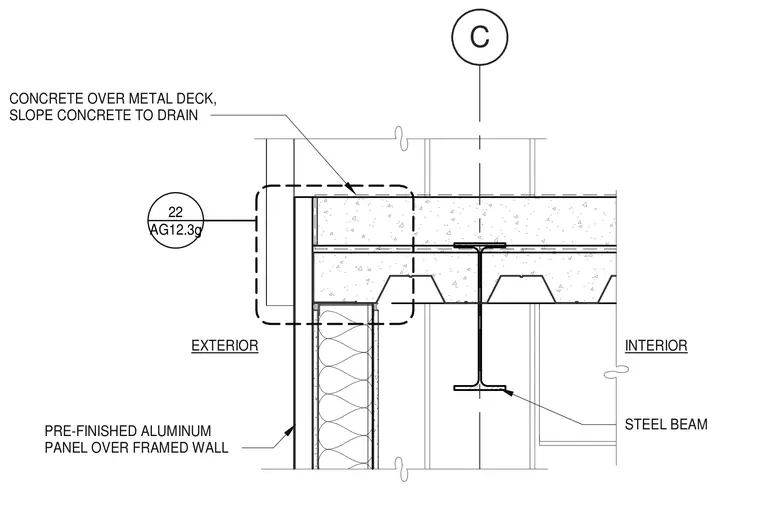

The balcony assembly features a concrete slab over metal deck bearing on a structural steel beam, with the concrete sloped toward a drain. An exterior pre-finished aluminum panel over a framed wall meets the balcony edge.
C INTERIOR EXTERIOR PRE-FINISHED ALUMINUM PANEL OVER FRAMED WALL CONCRETE OVER METAL DECK, SLOPE CONCRETE TO DRAIN STEEL BEAM AG12.3g 22
