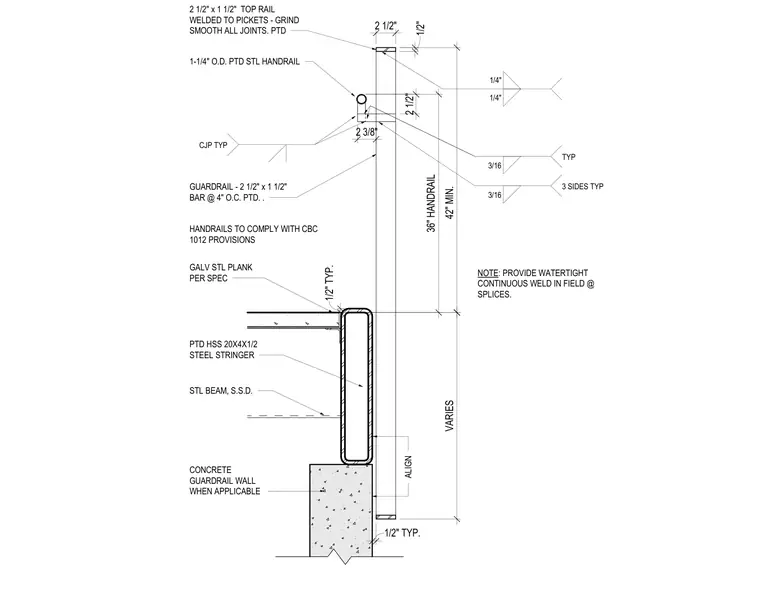

An exterior stair guardrail and handrail assembly mounts to a concrete guardrail wall and painted hollow structural section steel stringer. The guardrail consists of a two-and-a-half-inch by one-and-a-half-inch top rail welded to vertical pickets spaced at four inches on center, with all joints ground smooth and painted. A one-and-a-quarter-inch outside diameter painted steel handrail is welded to the guardrail posts with complete joint penetration welds typically. The structural support incorporates a galvanized steel plank per specifications resting on a painted hollow structural section twenty-by-four-by-one-half steel stringer and steel beam. A field note mandates a watertight continuous weld at splices, and handrails are detailed to comply with California Building Code provisions.
42" MIN. 2 3/8" 36" HANDRAIL 2 1/2" 2 1/2" 1/2" 2 1/2" x 1 1/2" TOP RAIL WELDED TO PICKETS - GRIND SMOOTH ALL JOINTS. PTD 1-1/4" O.D. PTD STL HANDRAIL GUARDRAIL - 2 1/2" x 1 1/2" BAR @ 4" O.C. PTD. . GALV STL PLANK PER SPEC PTD HSS 20X4X1/2 STEEL STRINGER STL BEAM, S.S.D. NOTE: PROVIDE WATERTIGHT CONTINUOUS WELD IN FIELD @ SPLICES. 3/16 3 SIDES TYP 1/4" 1/4" CJP TYP HANDRAILS TO COMPLY WITH CBC 1012 PROVISIONS 3/16 TYP 1/2" TYP. VARIES CONCRETE GUARDRAIL WALL WHEN APPLICABLE ALIGN 1/2" TYP.
