This elevator lantern assembly features a satin stainless steel faceplate with a number 4 brushed finish mounted eight feet above the finish floor. The unit incorporates two molded Plexiglas lenses with a filtered white finish for directional signaling. A note requires visual and audible signals to be activated when the elevator becomes accessible.

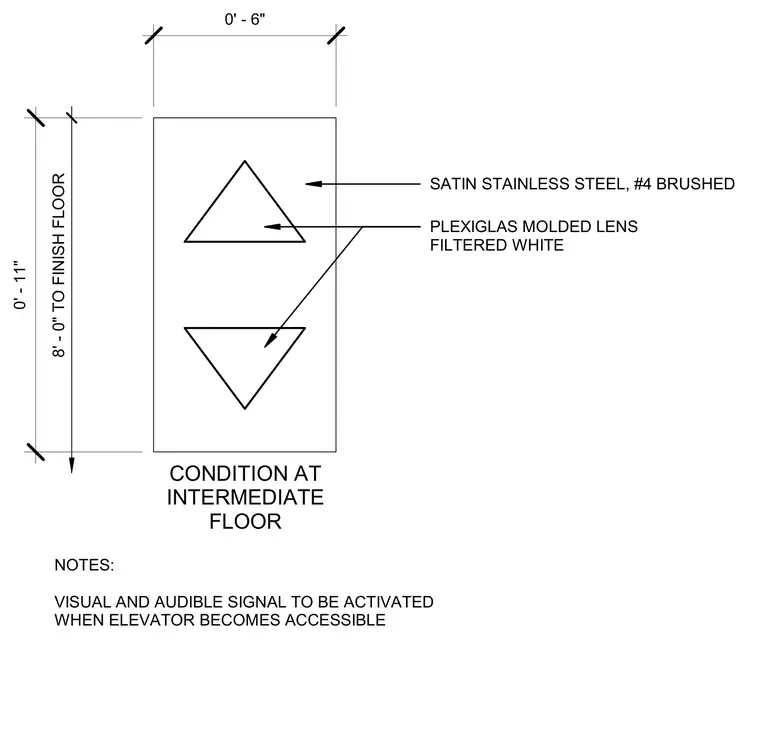

CONDITION AT INTERMEDIATE FLOOR SATIN STAINLESS STEEL, #4 BRUSHED 8' - 0" TO FINISH FLOOR 0' - 11" 0' - 6" PLEXIGLAS MOLDED LENS FILTERED WHITE NOTES: VISUAL AND AUDIBLE SIGNAL TO BE ACTIVATED WHEN ELEVATOR BECOMES ACCESSIBLE
