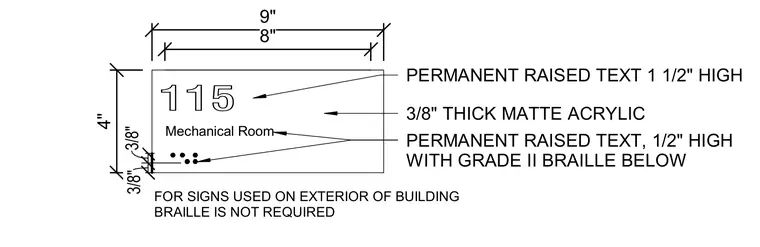

This acrylic sign measures 9 inches wide by 4 inches high and is fabricated from 3/8-inch thick matte acrylic. The assembly features permanent raised text standing 1-1/2 inches high for the room number and 1/2 inch high for the room description. Grade II braille is positioned directly below the raised text, though exterior building applications omit the braille requirement. Overall dimensions include an 8-inch horizontal spacing for the primary sign body and 3/8-inch vertical margins.
115 Mechanical Room 9" 4" PERMANENT RAISED TEXT 1 1/2" HIGH 3/8" THICK MATTE ACRYLIC 3/8" 3/8" 8" PERMANENT RAISED TEXT, 1/2" HIGH WITH GRADE II BRAILLE BELOW FOR SIGNS USED ON EXTERIOR OF BUILDING BRAILLE IS NOT REQUIRED
