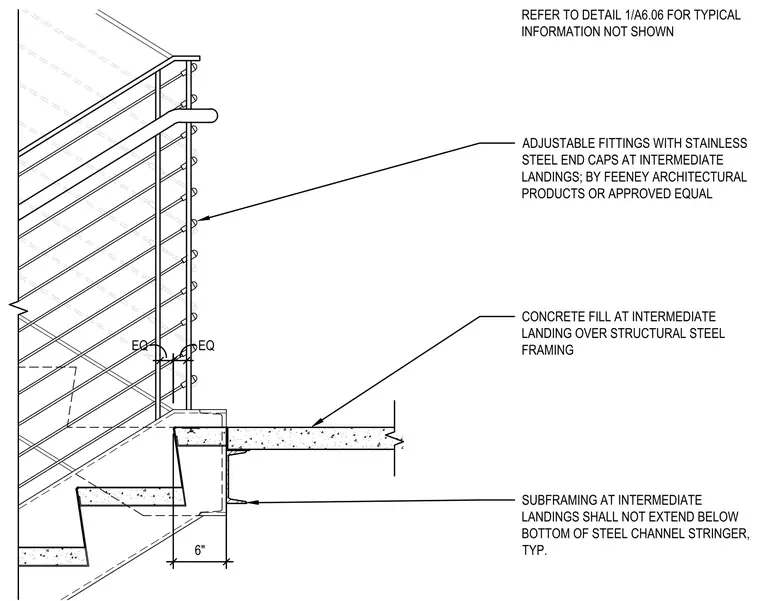

Concrete fill is placed at the intermediate stair landing over structural steel framing supported by steel channel stringers. Subframing at intermediate landings is restricted from extending below the bottom of the steel channel stringer. A cable railing system features adjustable fittings with stainless steel end caps at intermediate landings by Feeney Architectural Products or an approved equal. Spacing is evenly divided with equal dimensions.
REFER TO DETAIL 1/A6.06 FOR TYPICAL INFORMATION NOT SHOWN CONCRETE FILL AT INTERMEDIATE LANDING OVER STRUCTURAL STEEL FRAMING ADJUSTABLE FITTINGS WITH STAINLESS STEEL END CAPS AT INTERMEDIATE LANDINGS; BY FEENEY ARCHITECTURAL PRODUCTS OR APPROVED EQUAL EQ EQ 6" SUBFRAMING AT INTERMEDIATE LANDINGS SHALL NOT EXTEND BELOW BOTTOM OF STEEL CHANNEL STRINGER, TYP.
