A 10-gauge diamond wire mesh with 1-inch openings is welded to a 3x3x1/4-inch structural steel angle with a 3/16-inch fillet weld typically spaced at 24 inches. The steel angle connects to a framing member via 1/4-inch diameter self-tapping screws spaced at 18 inches on center. A vertical component aligns with a 1 1/2-inch dimension tolerance.

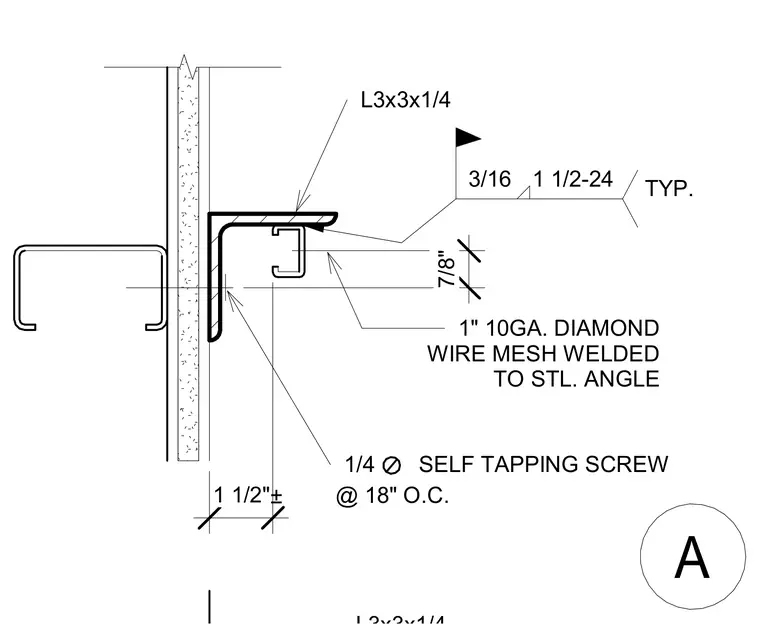

A ± 1" 10GA. DIAMOND WIRE MESH WELDED TO STL. ANGLE SELF TAPPING SCREW @ 18" O.C. L3x3x1/4 TYP. 1/4 3/16 1 1/2-24 7/8" 1 1/2"
