Architectural · A-G6Z9H

Crane End Bracket Plan and Wall Integration

Materials

Elements

Columns Beams Walls Waterproofing / Flashing Connections / Plates

About this detail

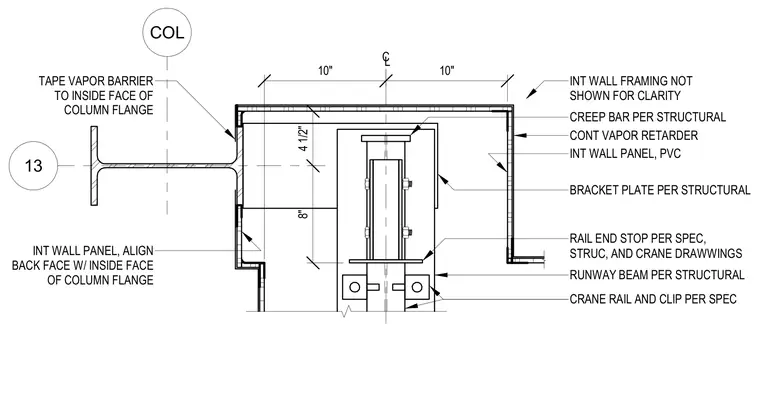

This plan detail shows the connection and enclosure of a crane runway beam end bracket at column line thirteen. A crane rail and clip are mounted on the runway beam per specifications, with a creep bar located above per structural requirements. A bracket plate connects the assembly, surrounded by continuous vapor retarder and PVC interior wall panels aligned with the inside face of the column flange. A vapor barrier is taped directly to the inside face of the column flange, and rail end stops are installed per specifications and structural drawings.
