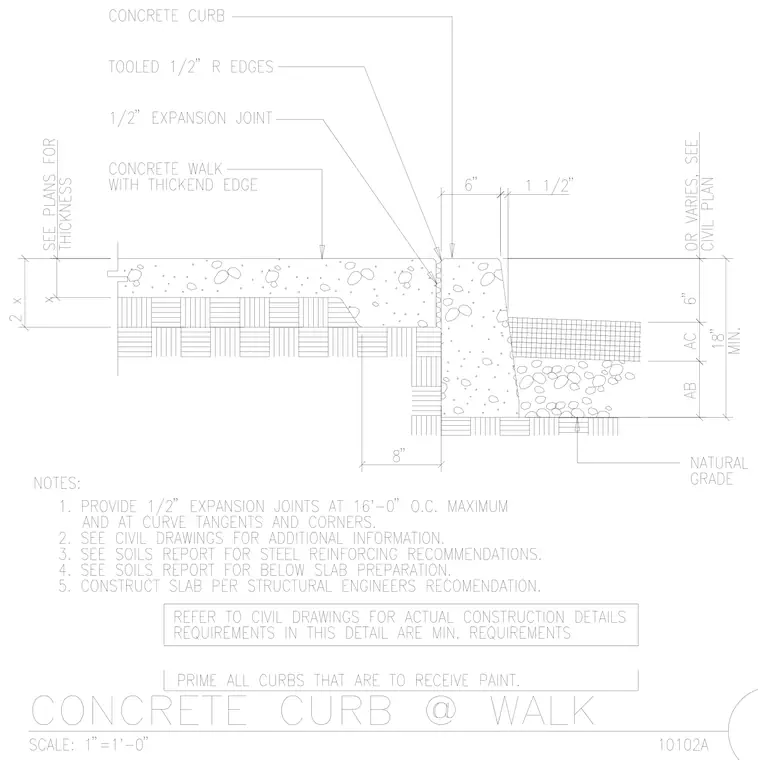

A concrete walk with a thickened edge transitions into a cast-in-place concrete curb via a half-inch expansion joint. The curb features tooled one-half-inch radius edges and sits above aggregate base and subgrade layers with a minimum depth of eighteen inches. General notes require half-inch expansion joints at sixteen feet on center maximum and at curve tangents and corners.
