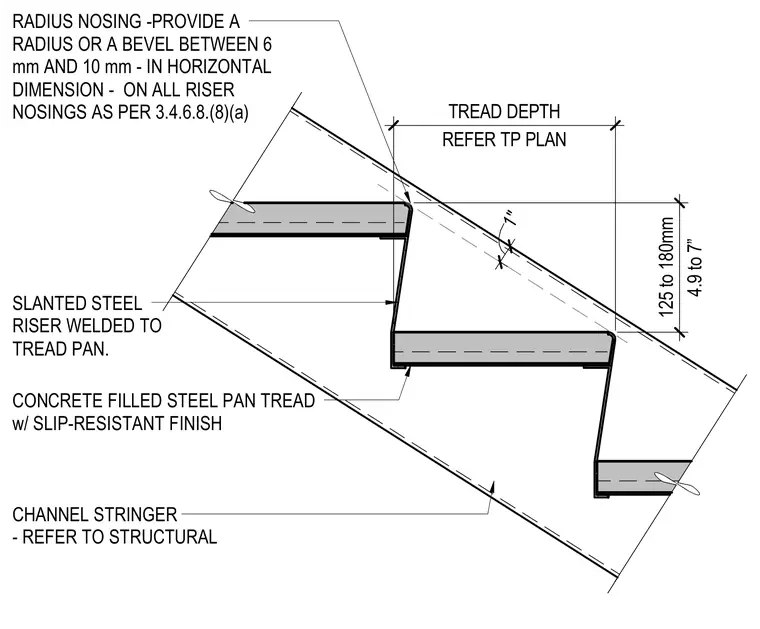

Concrete-filled steel pan treads with a slip-resistant finish are supported by slanted steel risers welded to the tread pans. A channel stringer provides structural support below the stair assembly, with its size and configuration coordinated per structural drawings. Riser nosings feature a required radius or bevel between six millimeters and ten millimeters in horizontal dimension. Tread depth is dimensioned per plan with riser heights ranging from one hundred twenty-five to one hundred eighty millimeters or four point nine to seven inches.
CONCRETE FILLED STEEL PAN TREAD w/ SLIP-RESISTANT FINISH CHANNEL STRINGER - REFER TO STRUCTURAL SLANTED STEEL RISER WELDED TO TREAD PAN. 1" 4.9 to 7” 125 to 180mm REFER TP PLAN TREAD DEPTH RADIUS NOSING -PROVIDE A RADIUS OR A BEVEL BETWEEN 6 mm AND 10 mm - IN HORIZONTAL DIMENSION - ON ALL RISER NOSINGS AS PER 3.4.6.8.(8)(a)
