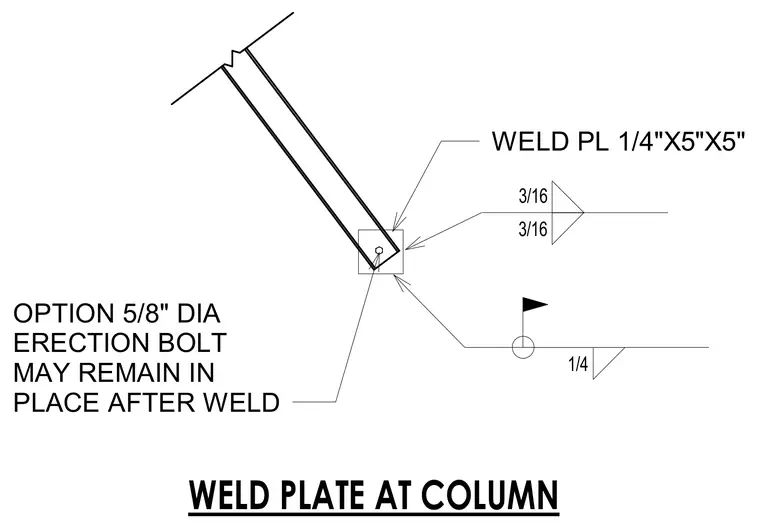

A one-quarter-inch by five-inch by five-inch weld plate is secured to the column using three-sixteenths-inch fillet welds. An optional five-eighths-inch diameter erection bolt is provided and may remain in place after welding. The plate assembly incorporates a one-quarter-inch fillet weld with field-weld and all-around weld indicators.
1/4 3/16 3/16 WELD PL 1/4"X5"X5" OPTION 5/8" DIA ERECTION BOLT MAY REMAIN IN PLACE AFTER WELD WELD PLATE AT COLUMN
