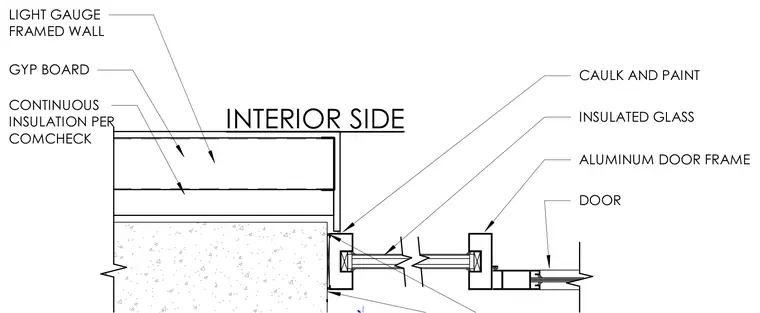

An aluminum door frame holding insulated glass connects to the opening in a tilt-up concrete wall and light-gauge framed wall lined with gypsum board. Continuous insulation is installed per ComCheck behind the interior wall finish. The joint between the aluminum frame and the concrete substrate is sealed with caulk and finished with paint.
DOOR INSULATED GLASS INTERIOR SIDE ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONTINUOUS INSULATION PER COMCHECK
