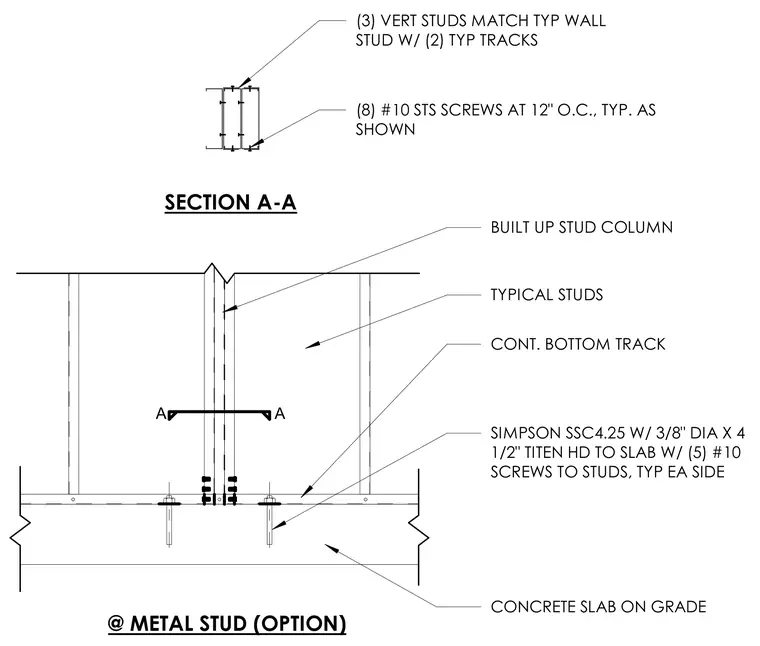

A built-up metal stud column is anchored to a concrete slab on grade using continuous bottom tracks and Simpson SSC4.25 clips secured with three-eighths inch diameter by four-and-a-half-inch Titen HD anchors. The column consists of three vertical studs matching typical wall studs and two typical tracks fastened with eight number ten self-tapping screws at twelve inches on center. Typical wall studs frame into the assembly, and five number ten screws connect the tracks to the studs on each side.
SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN
