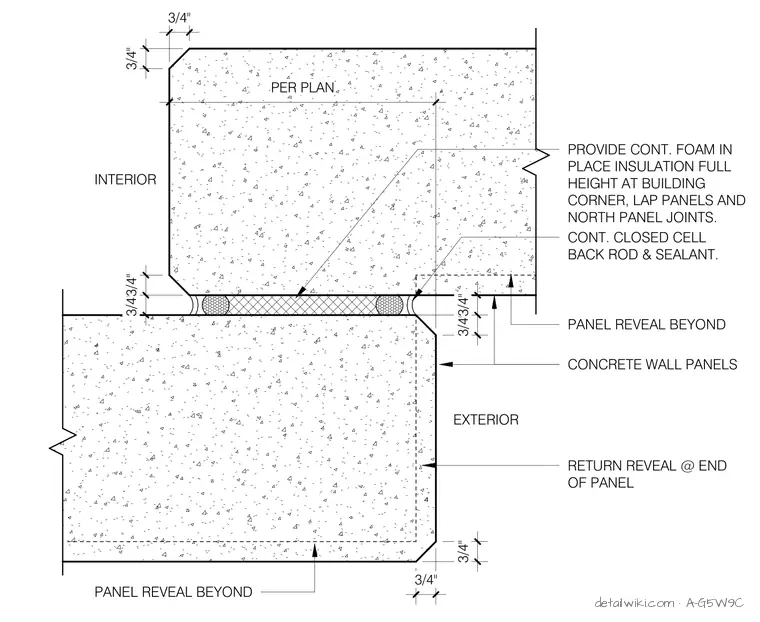

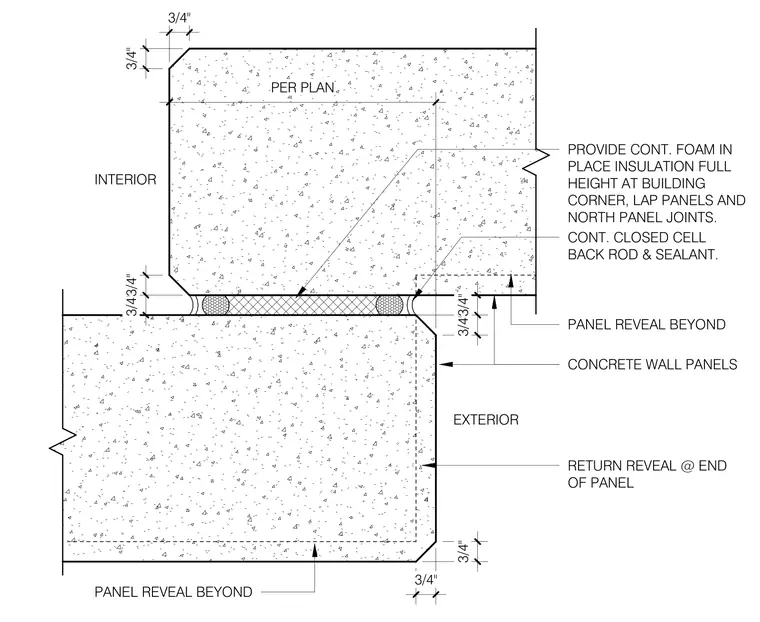

This outside corner assembly consists of two concrete wall panels meeting at a ninety-degree angle with a three-quarter-inch by three-quarter-inch reveal at the exterior corner. The joint is sealed with a continuous closed-cell backer rod and sealant. Continuous foam-in-place insulation is provided full-height at the building corner, lapping the panels and the north panel joints. The panel edges feature a three-quarter-inch return reveal.
Text on the drawing
INTERIOR PROVIDE CONT. FOAM IN PLACE INSULATION FULL HEIGHT AT BUILDING CONT. CLOSED CELL BACK ROD & SEALANT. PANEL REVEAL BEYOND CONCRETE WALL PANEL 3/4" 3/4" 3/4"
