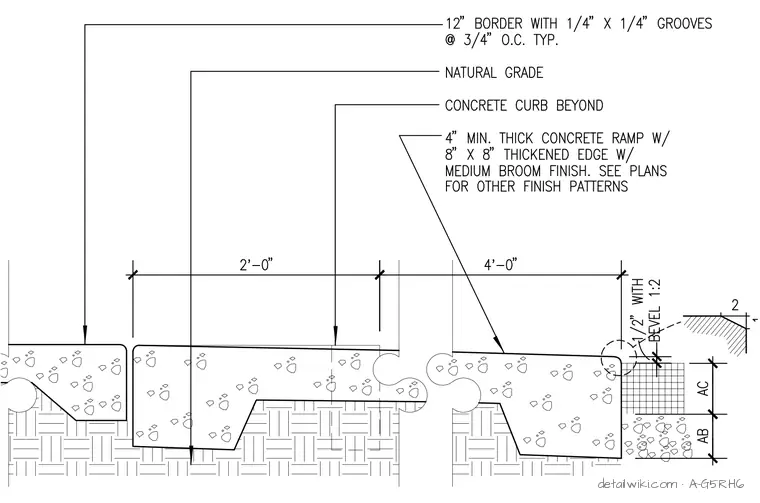

A concrete ramp with a minimum thickness of four inches and an eight-inch by eight-inch thickened edge, finished with a medium broom texture. A twelve-inch wide border is integrated into the concrete, featuring one-quarter inch by one-quarter inch grooves spaced at three-quarters of an inch on center. The ramp edge includes a one-half inch bevel at a one-to-two slope. The assembly is positioned adjacent to a concrete curb and transitions to the natural grade.
