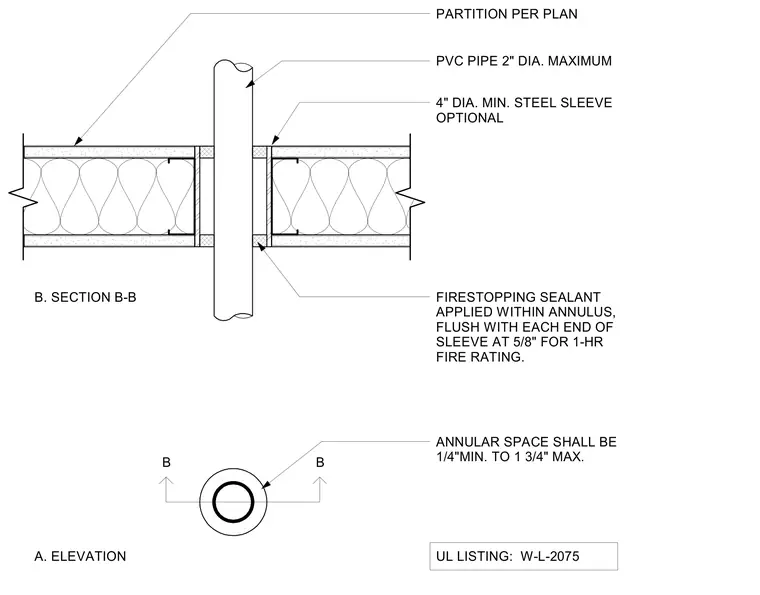

A two-inch maximum diameter PVC pipe penetrates a partition per plan through an optional four-inch minimum diameter steel sleeve. An annular space ranging from one-quarter inch minimum to one and three-quarters inch maximum surrounds the pipe. Firestopping sealant is applied within the annulus, flush with each end of the sleeve at five-eighths inch depth for a one-hour fire rating, complying with UL Listing W-L-2075.
UL LISTING: W-L-2075 B B ANNULAR SPACE SHALL BE 1/4"MIN. TO 1 3/4" MAX. A. ELEVATION PARTITION PER PLAN B. SECTION B-B PVC PIPE 2" DIA. MAXIMUM 4" DIA. MIN. STEEL SLEEVE OPTIONAL FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS, FLUSH WITH EACH END OF SLEEVE AT 5/8" FOR 1-HR FIRE RATING.
